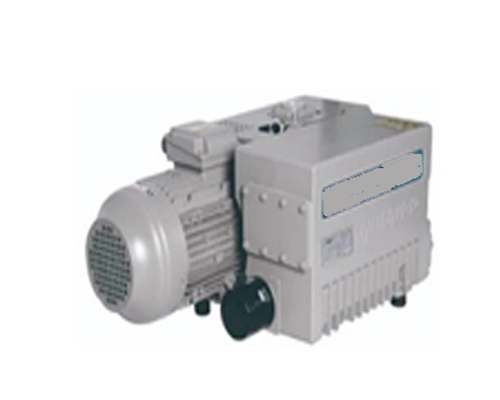

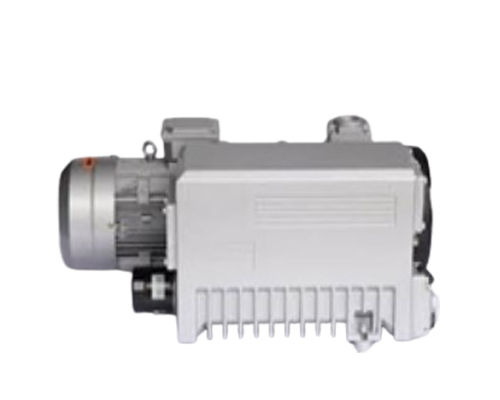

OIL LUBRICATED VACUUM PUMP (OTL PUMP)
INDOVAC vacuum pumps are available in various types, including Once Through Lubricated (OTL) Rotary Vane Vacuum Pumps, designed for different and critical applications. The OTL pumps are single-stage rotary vane pumps featuring an inbuilt oil recirculation system that ensures continuous lubrication of internal components. This consistent lubrication helps maintain low operating temperatures, even during extended use. Due to their robust design and reliable performance, these pumps are well-suited for rough vacuum applications in a wide range of industrial settings.
Features
-
Maximum Pumping Speed with a pressure range of 1000 to 0.5 mbar
-
High water vapour tolerance with low noise operation
-
Pollution-free operation for clean environments
-
Inbuilt anti-suck back mechanical NRV (Non-Return Valve)
-
Air-cooled design for efficient heat management
-
Rated for continuous operation
-
Trouble-free performance with minimal maintenance
| Model | FAD (m³/hr) | Vacuum (mbar) | Power Required (HP) | Speed (RPM) | Oil Capacity (L) | Water Vapour Capacity (kg/hr) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| IPEC 20 | 20 | 0.5 | 0.75 | 1440 | 1 | 0.250 | 30 |
| IPEC 30 | 30 | 0.5 | 1.0 | 1440 | 1 | 0.5 | 40 |
| IPEC 40 | 40 | 0.5 | 1.0 | 1440 | 1.8 | 0.9 | 40 |
| IPEC 60 | 60 | 0.5 | 2.0 | 1440 | 2 | 1.4 | 60 |
| IPEC 100 | 100 | 0.5 | 3.0 | 1440 | 4 | 2.2 | 115 |
| IPEC 160 | 160 | 0.5 | 5.0 | 1440 | 3.0 | 3.0 | 145 |
| IPEC 300 | 300 | 0.5 | 10.0 | 1440 | 7.0 | 5.0 | 230 |
| Water Vapour Tolerance: 30 mbar | |||||||
