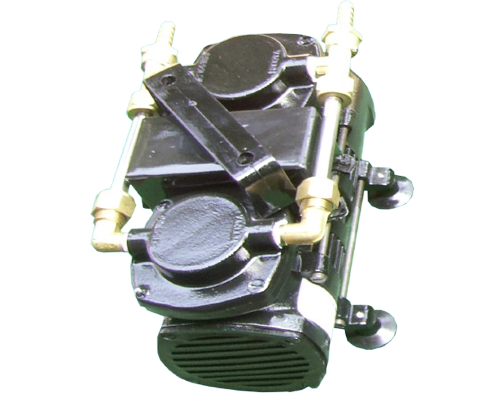

Diaphragm- 2

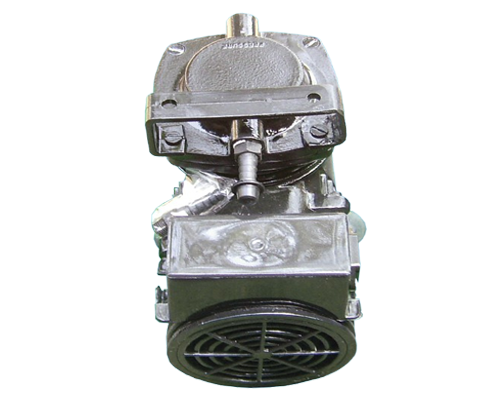

Diaphragm- 3

Diaphragm Type Vacuum Pump

DIAPHRAGM VACUUM PUMP are compact, oil-free units designed for both vacuum and pressure applications. These pumps are portable, low-noise, and constructed from high-grade aluminium die castings, ensuring durability and corrosion resistance. The diaphragms are made from 2-ply nylon-reinforced neoprene rubber, offering enhanced performance and longevity.

Key Features

  • Oil-Free Operation – Clean and maintenance-free

  • Low Noise – Quiet running for sensitive environments

  • Durable Construction – Aluminium die-cast body for rugged use

  • Reinforced Diaphragm – Long service life and chemical resistance

  • Portable Design – Easy to handle and relocate

  • Available in Capacity
  • Applications
Specification Details
Free Air Displacement 15 – 75 LPM
Ultimate Vacuum 22 – 27 inches Hg
Maximum Pressure 25 – 55 PSI
Power Requirement 1/20 – 1/4 HP

Applications

  • Laboratory equipment

  • Pollution control systems

  • Material handling equipment

  • Medical instruments

  • Dental vacuum systems

  • Air conditioner gas charging

  • Photographic developing equipment

  • Plastic welding machines

  • Nebulizers

  • Cement aeration systems
